Betotitan ®
Betotitan ® is a solution for the walls of very tall structures. Its
construction is easy and economical and gives the possibility of carrying out
works in places inaccessible to vehicles, whilst ensuring a high
resistance to surcharge scenarios. Plantable elements, with through colour.
Betotitan ® structures are stem gravity walls installed with or without
structural backfill. They perfectly adapt to difficult terrain and can support
the heaviest loads. Each course locks into its neighbour to prevent
displacement. The topsoil infill has a horizontal aspect that is protected
from erosion by the cellular structure. This enables optimum plant
colonisation. Documentation
Specification
Maximum height: 20 m
Weight of empty element: 55 kg
Weight of full element: 90 kg
Weight per square metre (full): 1800 kg
Number of elements per m² : 20
Packaging: 1.20 square metres per pallet
Colour: according to region
Uses
- Very high retaining walls
- Bridge abutments
- Dykes and embankments
- Slope consolidation
- Terrace forming
- Protection merlons
- Anti noise merlons
- Acoustic screens
Implementation
- Elements assembled without cementum, except for the foundation

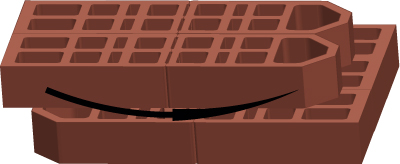

- Integral blocking between elements due to patented twin-locking system,
providing great strength within the structure
- The 4 pairs of lugs allows for the execution of 3 angles natural wall: 0 °
(vertical), -8 degrees and -23.5 °

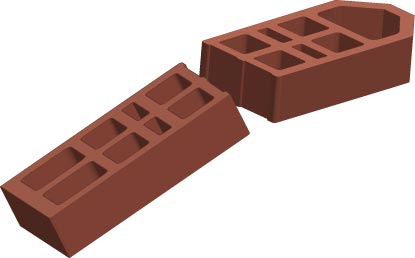

- According to the constraints and needs of each project, the elements can be
articulated to adjust the angle of wall
- Suited to installation on confined sites with difficult access for mechanised
plant
- Laid with or without
geo-grid according to the parameters of the project
- Tools Required: lump hammer, brick bolster, line, spirit level, tape measure
